:contentReference[oaicite:0]{index=0} is a high-performance nickel-copper alloy known for its excellent resistance to corrosion, especially in seawater, acids, alkalis, and harsh industrial environments. It is widely used where high strength and long service life are required.

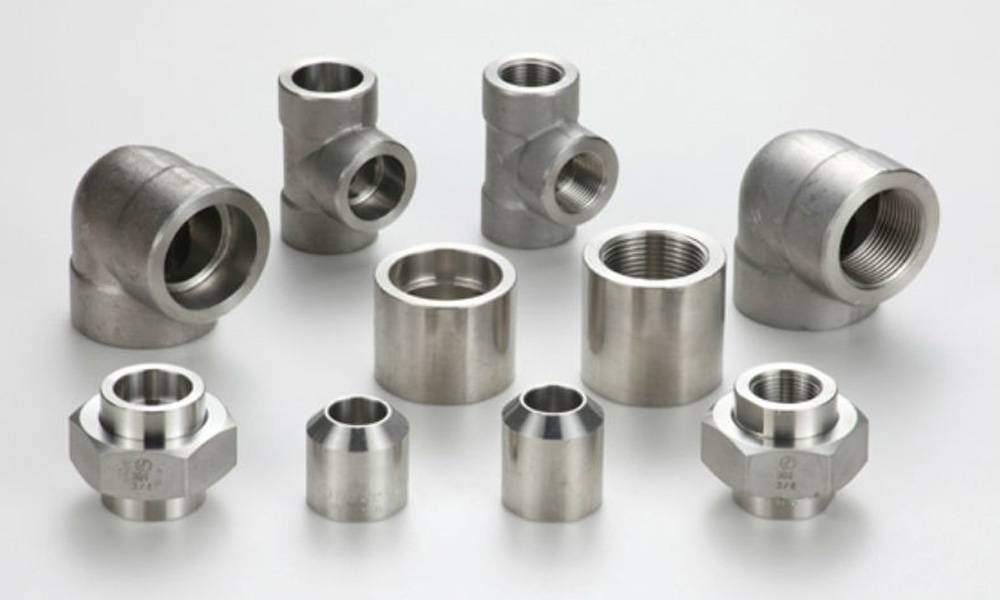

At Daksh Metals and Alloys, we supply premium quality Monel products including pipes, tubes, sheets, plates, bars, fittings, and fasteners. These materials are designed for critical applications in marine, chemical, oil & gas, and power industries.
Monel pipes and tubes offer excellent resistance to seawater corrosion, making them ideal for marine and offshore applications. Monel sheets, plates, and coils are widely used in heat exchangers, chemical plants, and pressure vessels.
We also supply Monel bars, fittings, and fasteners that provide high strength, toughness, and leak-proof performance in critical systems.
At Daksh Metals and Alloys, we ensure strict quality control, testing, and compliance with international standards to deliver reliable Monel products to global industries.
Specifications of Monel Products
| Product Form | Standard | Grades |
|---|---|---|
| Pipes & Tubes | ASTM B165 / B725 | Monel 400, Monel K500 |
| Sheets, Plates & Coils | ASTM B127 | Monel 400, Monel K500 |
| Bars (Round, Hex, Square) | ASTM B164 | Monel 400, Monel K500 |
| Flanges | ASME B16.5 / B16.47 | Monel 400, Monel K500 |
| Pipe Fittings | ASME B16.9 / B16.11 | Monel 400, Monel K500 |
| Fasteners | ASTM F468 / F467 | Monel 400, Monel K500 |
Chemical Composition
Monel 400 / Monel K500
| Element | Monel 400 (%) | Monel K500 (%) |
|---|---|---|
| Nickel (Ni) | 63 min | 63 min |
| Copper (Cu) | 28 – 34 | 27 – 33 |
| Iron (Fe) | 2.5 max | 2.0 max |
| Manganese (Mn) | 2.0 max | 1.5 max |
| Carbon (C) | 0.3 max | 0.25 max |
| Aluminium + Titanium | — | 2.3 – 3.15 |
Mechanical Properties
| Grade | Tensile Strength | Yield Strength | Hardness |
|---|---|---|---|
| Monel 400 | 480 MPa | 170 MPa | B75 |
| Monel K500 | 760 MPa | 480 MPa | C27 |
Equivalent Grades (Quick Reference)
| UNS | EN / DIN | Trade Name |
|---|---|---|
| N04400 | 2.4360 | Monel 400 |
| N05500 | 2.4375 | Monel K500 |
Applications of Monel Alloy
1. Marine Industry – Used in seawater systems, shipbuilding, and offshore structures due to excellent corrosion resistance.
2. Chemical Industry – Ideal for heat exchangers, reactors, and storage tanks handling acids and alkalis.
3. Oil & Gas Industry – Used in valves, pumps, and pipelines exposed to corrosive environments.
4. Power Plants – Suitable for heat exchangers and steam systems under high pressure and temperature.
5. Aerospace Industry – Used in structural and engine components requiring high strength and reliability.
6. Marine Engineering – Widely used in desalination plants and saltwater handling systems.
We Supply Monel Worldwide
We export Monel Alloy products to over 50+ countries including USA, UK, Germany, UAE, Saudi Arabia, Italy, Japan, South Korea, Canada, Australia, and many more global markets.
